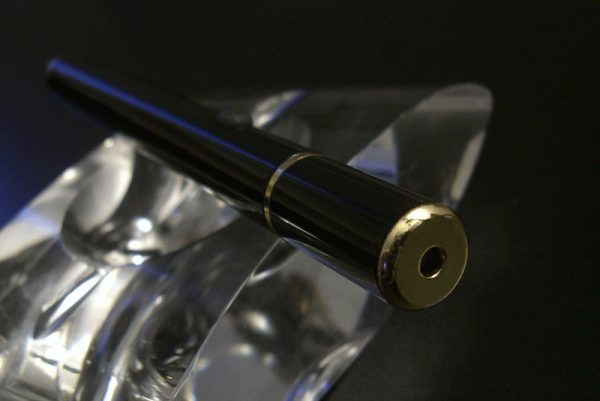

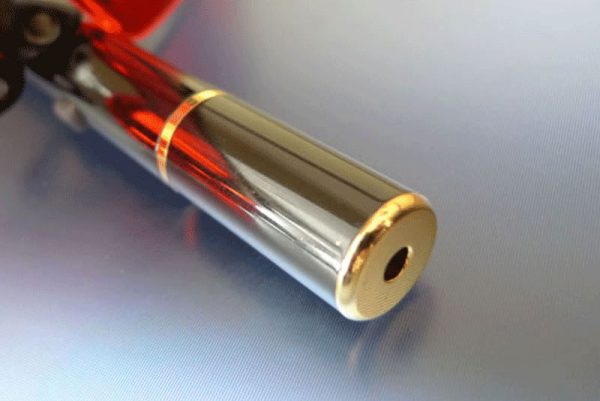

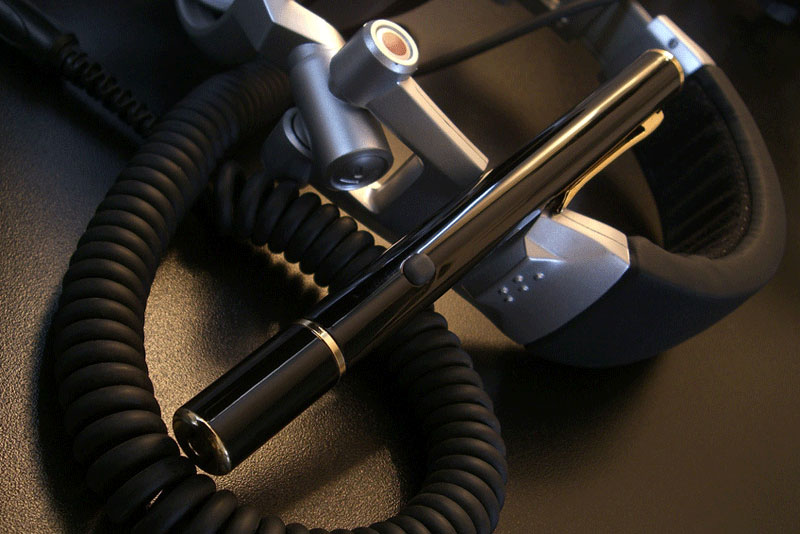

“IR1” Laser Pointer 808nm – 980nm – 1064nm – 1342nm




This“IR1” infrared laser pointeris a valuable tool for any application that requires a convenient sized IR laser in a pen style. Available in three infrared light frequencies of 808nm, 980nm, 1064nm, as well as 1342. Includes FDA approval, air cooling, high stability and efficiency diode, backed warranty, and a long expected life time.

Model: “IR1” Laser Pointer
Size: 13x167mm
Wavelength: 808nm 980nm 1064nm 1342nm
Laser Body: Black Polished Brass
Transverse Mode: TE00 TEM00 TEM00 TEM00
Output Power: 1-400mW 1-400mW 1-50mW 1-50mW
Beam Divergence: ~0.9-1.4 mRad
Beam Diameter: ~3.0mm ~1.5mm ~1.5mm ~1.5mm
Power Supply 2 x 1.5V “AAA” batteries
Operating Temperature: 15 – 35 C
Switch: Momentary On/Off Button
Expected Lifetime: >5000 hours
Warranty: 12 Months
